01 / 08 — MICRO-SCALE EXTRUSION
Engineered to the gram.
Xceptional Instruments builds and supports micro-scale extrusion and compounding capability for pharmaceutical, polymer, and specialty-chemical R&D — from feasibility trials in our New Jersey lab to fully configured production lines.
Equipment manufactured in partnership with Three-Tec GmbH, Switzerland.
02 / 08 — WHAT WE DO
From first gram to configured line.
We combine equipment knowledge with hands-on process work. That means fewer assumptions between feasibility, specification, installation, and scale-up.
03 / 08 — PRODUCTS
The complete micro-extrusion platform.

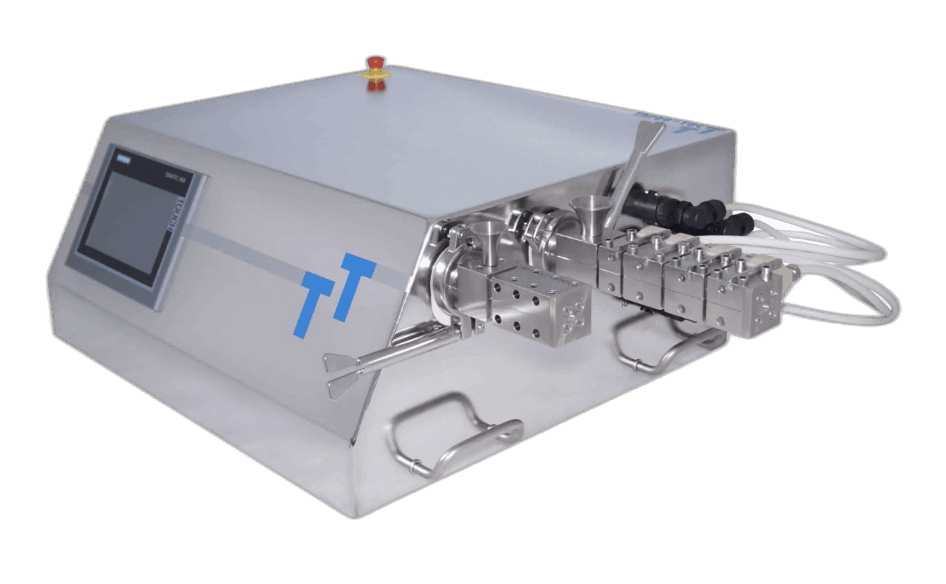

04 / 08 — MICRO COMPOUNDER
Start with one gram. Scale on the same bench.
Choose a 5/9, 5/12, or 9/12 mm Hybrid configuration. Each pairs two twin-screw diameters on a single chassis, giving the lab a deliberate path from limited-material screening to useful sample quantities without purchasing a second instrument. Add the recirculation channel for timed batch mixing, or run the same machine continuously.
05 / 08 — PROCESS

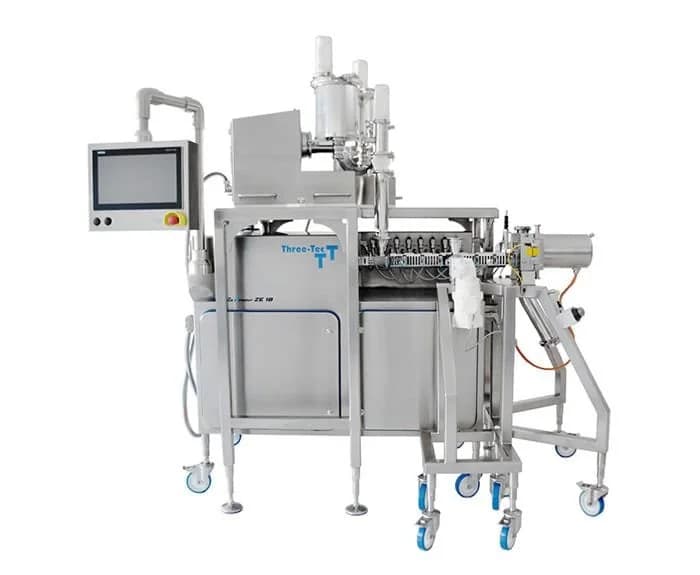

From feed to finished form — one integrated line.
Feed

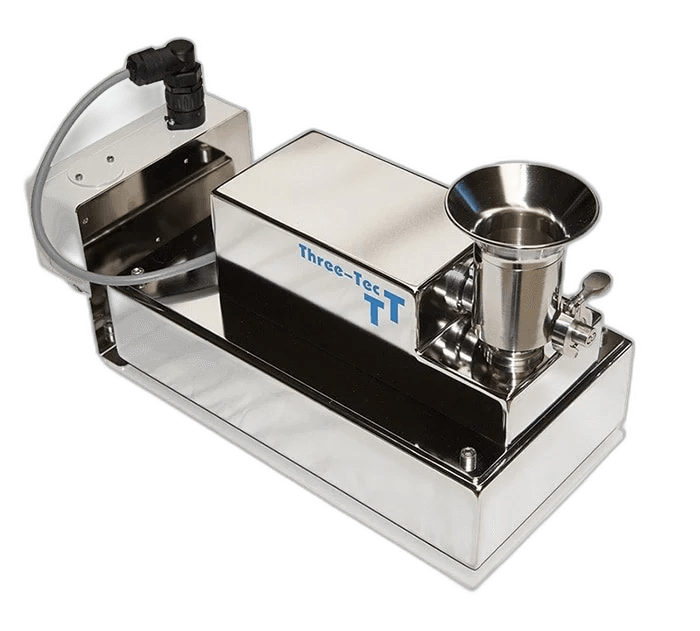

ZD-Series Feeders
Gravimetric & volumetric, 0.003–1.45 l/h
Extrude

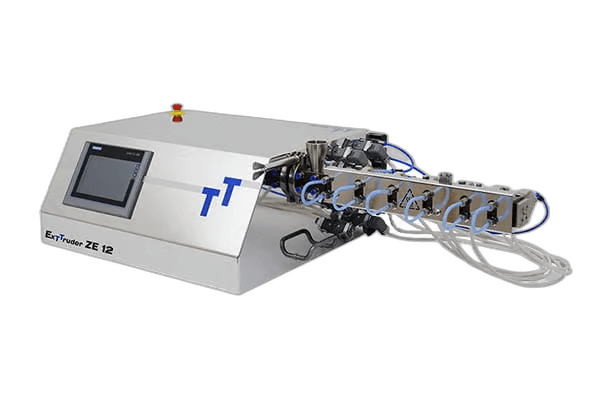

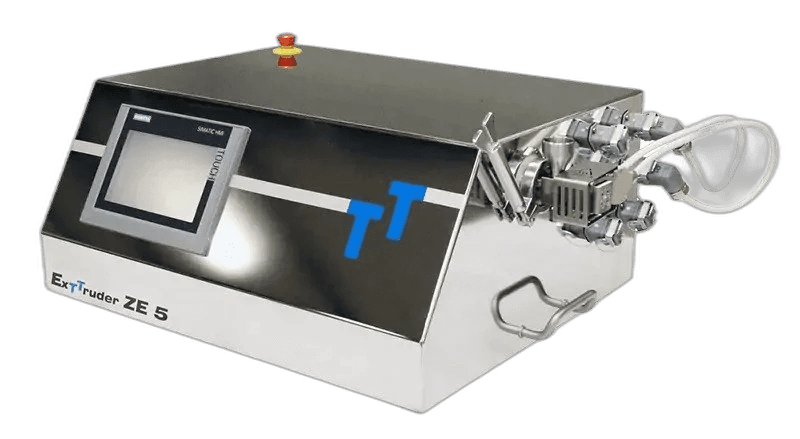

ZE-Series Extruders
5 / 9 / 12 mm twin-screw, 1 g min. batch
Shape
Film & Fiber Lines
Precision film or mono/multifilament spinning
Cut
Pelletizer & Hot Die
Strand or die-face, 0.5–10 mm granules
06 / 08 — PROVEN IN APPLICATION
Evidence before claims.

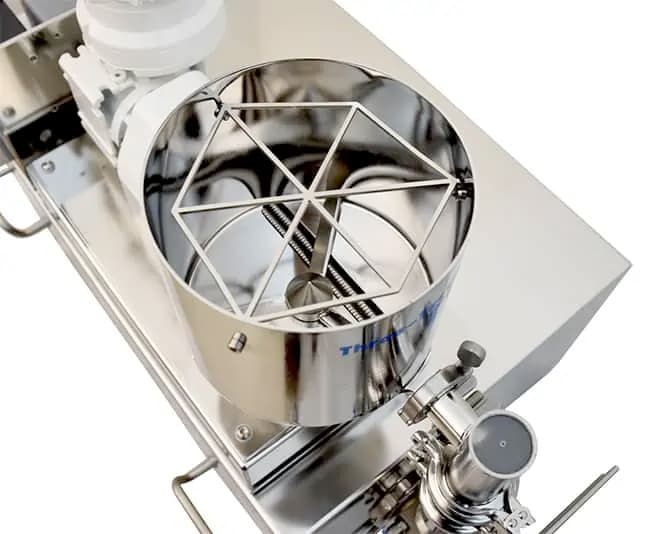

See how configurable extrusion and feeding systems have addressed pharmaceutical flexibility, ceramic feedstock production, and hazardous-area processing.

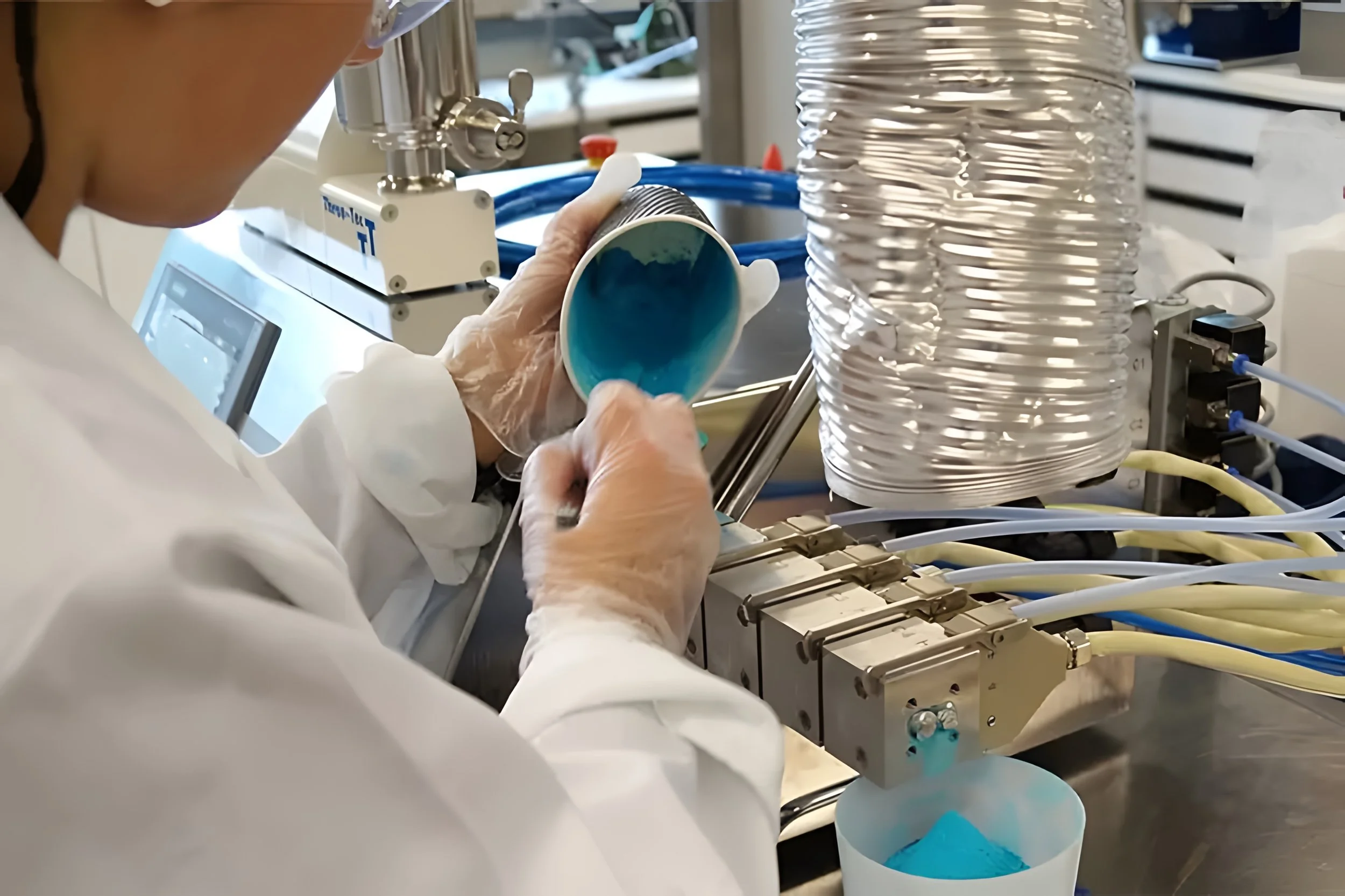

07 / 08 — TEST LAB
Bring your sample. Or we’ll run the trial for you.
Our Piscataway, NJ facility is equipped with the full Three-Tec GmbH platform — gravimetric and volumetric feeding, melt extrusion, wet and melt pelletizing, mixing, and contract small-batch production. Run feasibility studies on your own formulation with onsite or video-call observation.
- Gravimetric & volumetric feeding
- Melt extrusion (5 / 9 / 12 mm)
- Wet & melt pelletizing
- Process development & feasibility
- Contract small-batch production
Every engagement is scoped around a decision: feasibility, parameter development, method transfer, or finished small-batch material. Deliverables can include a run report, process parameters, configuration recommendations, and sample material.
08 / 08 — ENGINEERED ACROSS TWO TEAMS
Swiss manufacturing. U.S. application support.
Three-Tec GmbH manufactures the extrusion, compounding, feeding, and downstream platform in Switzerland. Xceptional Instruments brings local application engineering, lab trials, system configuration, installation, training, and ongoing support from New Jersey.
Together, the partnership connects process questions in the lab with the people configuring and building the production system.
